All range of lead acid batteries with different capacities can be customized for your project.
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm）
Length × Width × Height |
Total Height (mm) | Net Weight (kgs) | Gross Weight (kgs) | Terminal |
|---|---|---|---|---|---|---|---|

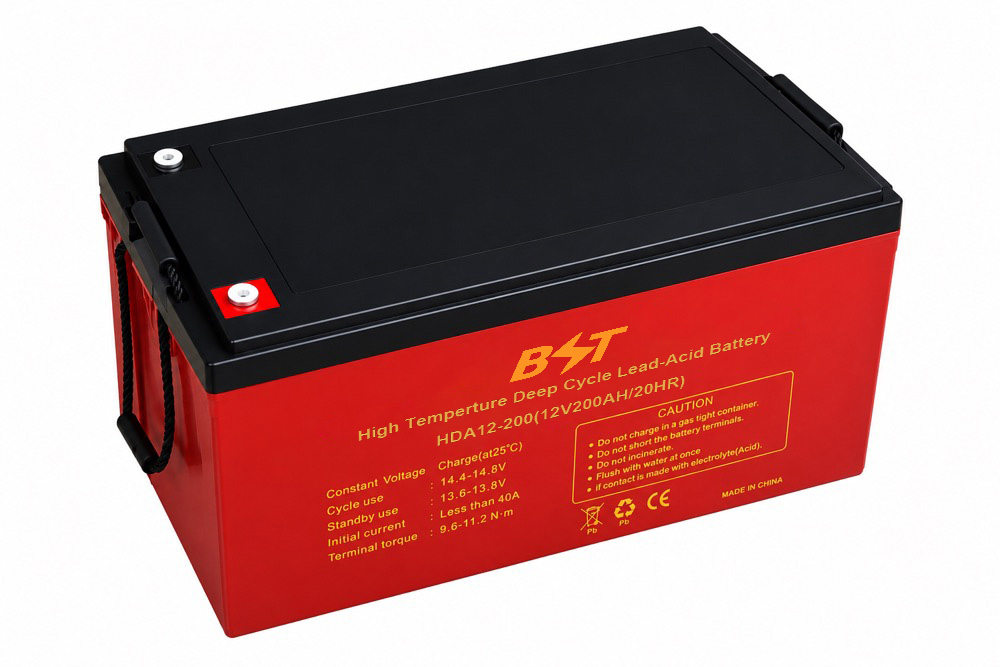

| HDA12-200 | 12 | 200/20HR | 532 × 206 × 215 | 220 | 58.4 | 58.7 | M8 |
– Optimized positive plate chemical additives & special AGM separators
– 70% longer cycle life compared to standard Duration range
– 12–15 years float service life
– Ideal for unstable power scenarios demanding superior cycle performance
– Main applications: PV systems, small renewable energy systems, electric vehicles
| ( HDA ) 12V High Temperature Deep Cycle VRLA AGM Battery | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Total Height (mm) | Net Weight (kgs) | Gross Weight (kgs) | Terminal |
| HDA12-14 | 12 | 14/20HR | 152 | 99 | 96 | 102 | 3.8 | 4 | F1/F2 |
| HDA12-20 | 12 | 20/20HR | 181 | 77 | 167 | 167 | 6.0 | 6.2 | T1/L1 |
| HDA12-24 | 12 | 24/20HR | 166 | 175 | 126 | 126 | 8.3 | 8.5 | M6 |
| HDA12-26 | 12 | 26/20HR | 165 | 126 | 174 | 179 | 8.4 | 8.6 | M6 |
| HDA12-35 | 12 | 35/20HR | 196 | 130 | 155 | 167 | 10.5 | 10.8 | M6 |
| HDA12-40 | 12 | 40/20HR | 198 | 166 | 174 | 174 | 14.2 | 14.5 | M6 |
| HDA12-55 | 12 | 55/20HR | 229 | 138 | 208 | 212 | 16.1 | 16.4 | M6 |
| HDA12-70 | 12 | 70/20HR | 350 | 167 | 178 | 178 | 23.3 | 23.6 | M6 |
| HDA12-75 | 12 | 75/20HR | 260 | 169 | 211 | 215 | 25.0 | 25.5 | M6 |
| HDA12-85 | 12 | 85/20HR | 260 | 169 | 211 | 215 | 26.1 | 26.6 | M6 |
| HDA12-90 | 12 | 90/20HR | 307 | 169 | 211 | 216 | 28.2 | 28.7 | M6/M8 |
| HDA12-100 | 12 | 100/20HR | 307 | 169 | 211 | 216 | 30.2 | 30.7 | M6/M8 |
| HDA12-110 | 12 | 110/20HR | 328 | 176 | 214 | 220 | 33.3 | 33.5 | M8 |
| HDA12-120 | 12 | 120/20HR | 407 | 173 | 210 | 233 | 39.2 | 39.4 | M8 |
| HDA12-135 | 12 | 135/20HR | 341 | 173 | 283 | 288 | 39.2 | 39.4 | M8 |
| HDA12-150 | 12 | 150/20HR | 484 | 171 | 241 | 241 | 45.5 | 45.7 | M8 |
| HDA12-180 | 12 | 180/20HR | 532 | 206 | 215 | 220 | 56.0 | 56.3 | M8 |
| HDA12-200 | 12 | 200/20HR | 532 | 206 | 215 | 220 | 58.4 | 58.7 | M8 |
| HDA12-230 | 12 | 230/20HR | 522 | 240 | 219 | 225 | 65.0 | 65.3 | M8 |
| HDA12-250 | 12 | 250/20HR | 520 | 269 | 203 | 207 | 71.0 | 71.3 | M8 |
| HDA12-300 | 12 | 300/20HR | 520 | 268 | 220 | 226 | 77.0 | 77.5 | M8 |
| ( HDA ) 6V High Temperature Deep Cycle VRLA AGM Battery | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Capacity (Ah) | Length (mm) | Width (mm) | Height (mm) | Total Height (mm) | Net Weight (kgs) | Gross Weight (kgs) | Terminal |

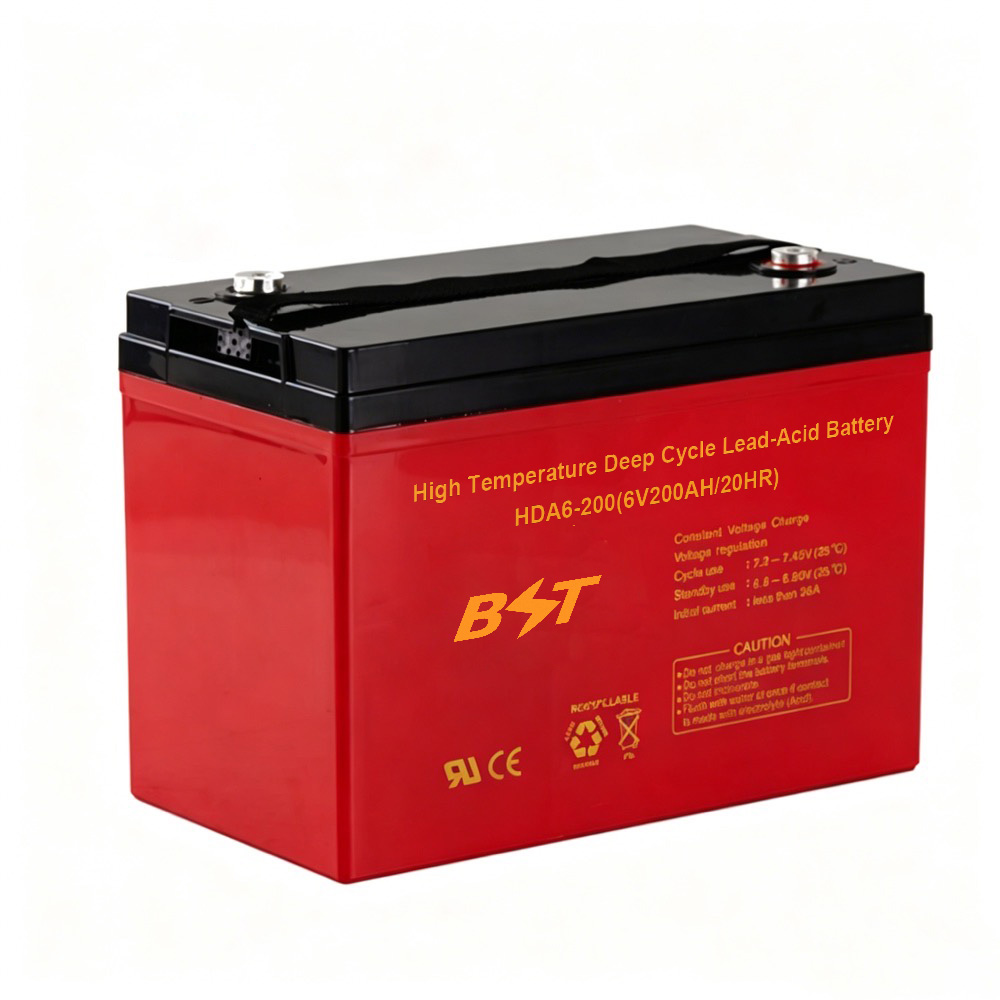

| HDA6-200 | 6 | 200/20HR | 306 | 168 | 220 | 225 | 30.3 | 30.5 | M8 |
| HDA6-210 | 6 | 210/20HR | 260 | 180 | 247 | 252 | 29.8 | 30 | M8 |
| HDA6-220 | 6 | 220/20HR | 306 | 168 | 220 | 225 | 31.8 | 32 | M8 |
| HDA6-225 | 6 | 225/20HR | 243 | 187 | 275 | 275 | 30.8 | 31 | M8 |
| HDA6-250 | 6 | 250/20HR | 260 | 180 | 265 | 272 | 34.8 | 35.1 | M8 |
| HDA6-310 | 6 | 310/20HR | 295 | 178 | 354 | 360 | 46.3 | 46.6 | M8 |
| HDA6-330 | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.9 | 47.2 | M8 |
| HDA6-380 | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.6 | 55.9 | M8 |
| HDA6-420 | 6 | 420/20HR | 295 | 178 | 404 | 410 | 57.1 | 57.6 | M8 |
| HDA8-170 | 8 | 170/20HR | 260 | 182 | 266 | 271 | 34.3 | 34.8 | M8 |
| HDA8-200 | 8 | 200/20HR | 260 | 182 | 295 | 301 | 38.3 | 38.8 | M8 |
