All range of lead carbon batteries with different capacities can be customized for your projects.
| Model | Nominal Voltage (V) | Capacity (Ah) | Dimension (mm)
Length × Width × Height |
Total Height (mm) | Net Weight (kgs) | Gross Weight (kgs) | Terminal |
|---|---|---|---|---|---|---|---|
| HFC12-100 | 12 | 100/20HR | 331× 176× 215 | 219 | 33 | 33.5 | M8 |
| 12V HFC High-Temp Fast Charge Lead Carbon Battery Model list | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Capacity (Ah) | Length
(mm) |
Width
(mm) |
Height
(mm) |
Total Height
(mm) |
Net Weight(kgs) | Gross Weight(kgs) | Terminal |
| HFC12-20 | 12 | 20/20HR | 166 | 175 | 126 | 126 | 8.4 | 8.6 | M6 |
| HFC12-24 | 12 | 24/20HR | 165 | 126 | 174 | 174 | 8.6 | 8.8 | M6 |
| HFC12-30 | 12 | 30/20HR | 196 | 130 | 155 | 167 | 10.2 | 10.4 | M6 |
| HFC12-35 | 12 | 35/20HR | 198 | 166 | 174 | 174 | 14 | 14.2 | M6 |
| HFC12-50 | 12 | 50/20HR | 229 | 138 | 208 | 212 | 17.7 | 18 | M6 |
| HFC12-60 | 12 | 60/20HR | 350 | 167 | 178 | 178 | 23 | 23.3 | M6 |
| HFC12-75 | 12 | 75/20HR | 260 | 169 | 211 | 215 | 26.0 | 26.3 | M6 |
| HFC12-90 | 12 | 90/20HR | 307 | 169 | 211 | 215 | 30 | 30.3 | M6 |

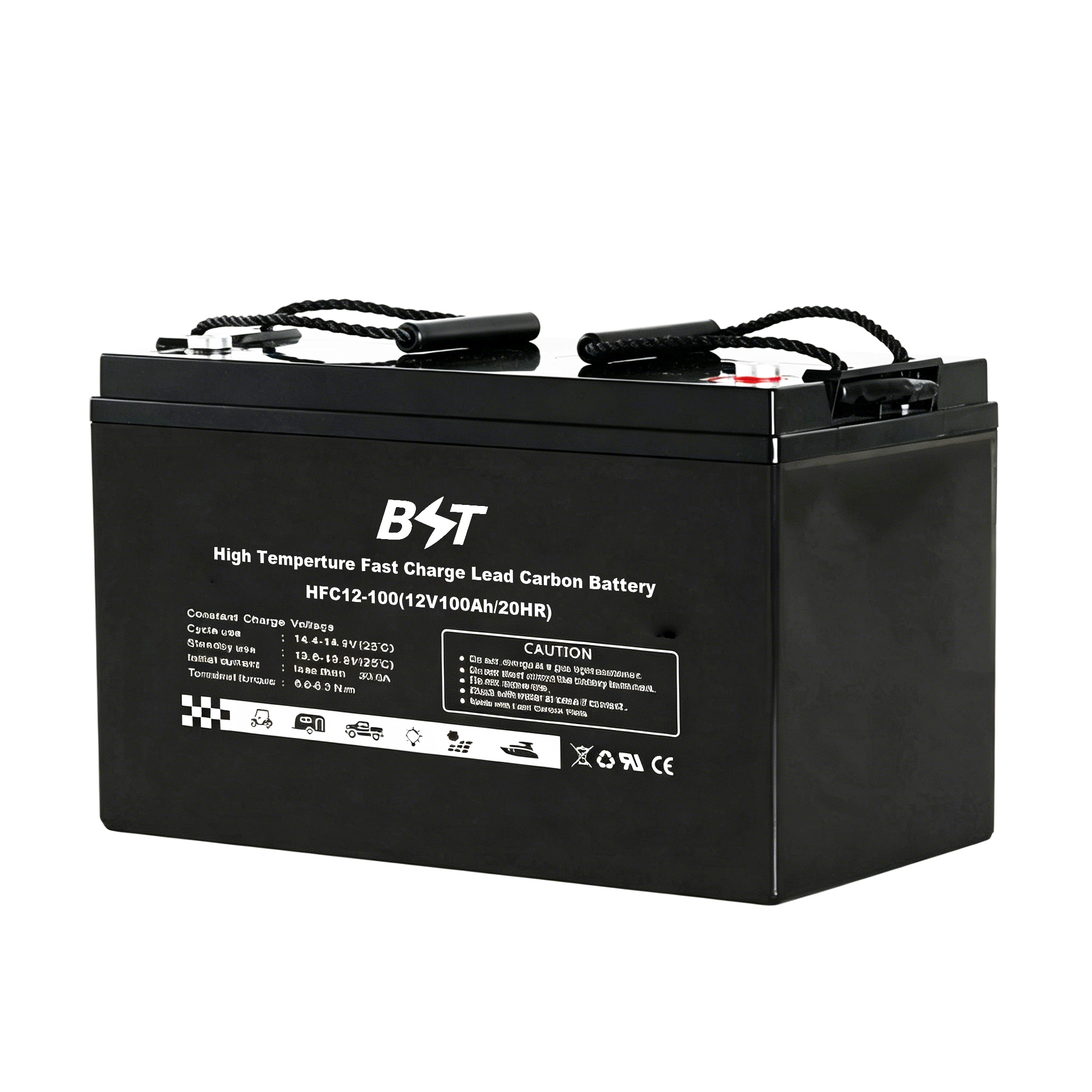

| HFC12-100 | 12 | 100/20HR | 331 | 176 | 215 | 219 | 33.0 | 33.5 | M8 |
| HFC12-110 | 12 | 110/20HR | 407 | 174 | 208 | 233 | 39 | 39.5 | M8 |
| HFC12-120 | 12 | 120/20HR | 341 | 173 | 283 | 287 | 40.5 | 41 | M8 |
| HFC12-135 | 12 | 135/20HR | 484 | 171 | 241 | 241 | 45.5 | 45.7 | M8 |
| HFC12-180 | 12 | 180/20HR | 532 | 206 | 215 | 219 | 58.5 | 58.7 | M8 |

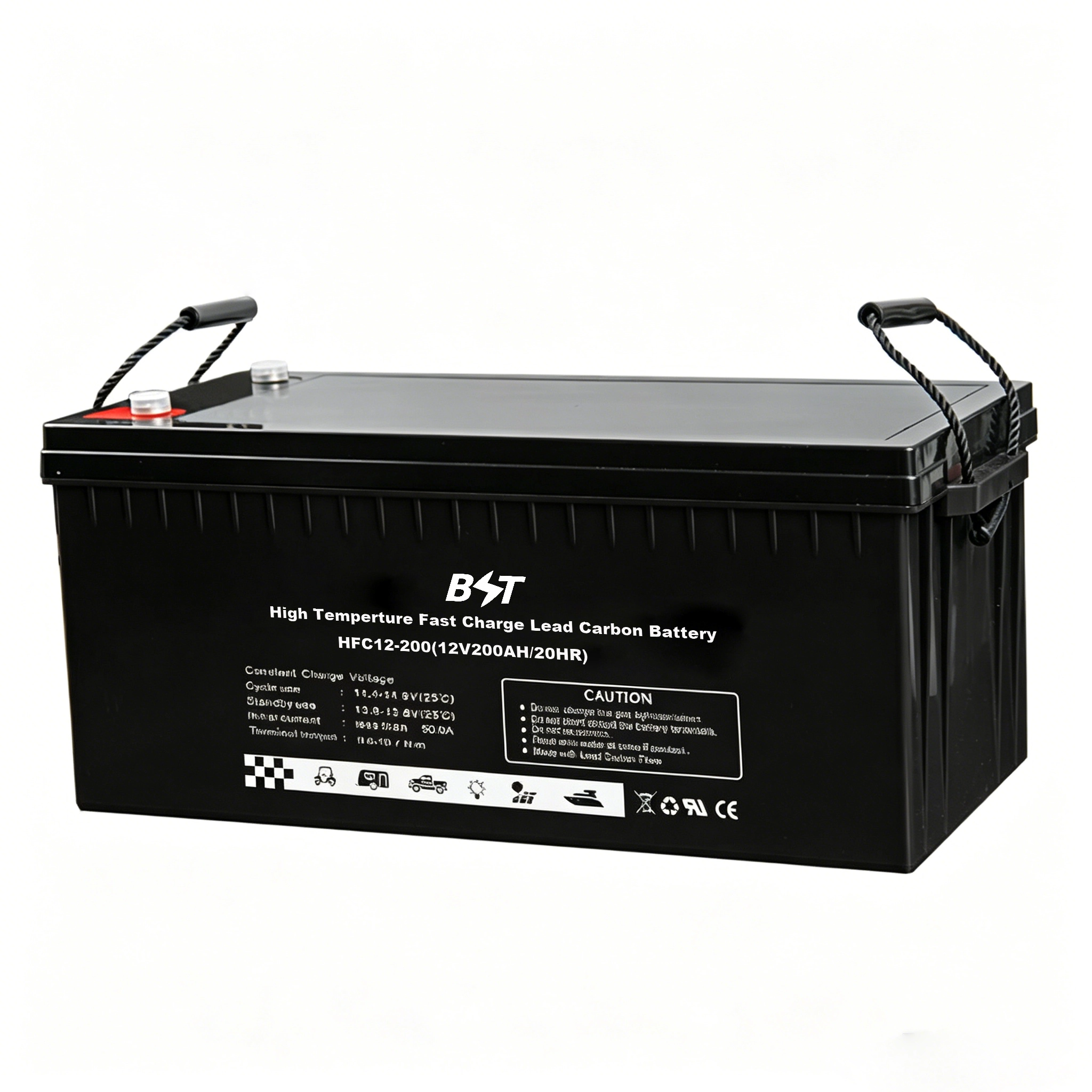

| HFC12-200 | 12 | 200/20HR | 522 | 240 | 219 | 223 | 64.8 | 65 | M8 |
| HFC12-220 | 12 | 220/20HR | 520 | 268 | 203 | 207 | 70.8 | 71.3 | M8 |
| HFC12-250 | 12 | 250/20HR | 520 | 268 | 220 | 224 | 77.5 | 78 | M8 |
| 6V HFC High Temp Fast Charge Lead Carbon Battery Model list | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Nominal Voltage (V) | Capacity (Ah) | Length
(mm) |
Width
(mm) |
Height
(mm) |
Total Height
(mm) |
Net Weight(kgs) | Gross Weight(kgs) | Terminal |
| HFC6-200 | 6 | 200/20HR | 306 | 168 | 220 | 226 | 31.0 | 31.2 | M8 |
| HFC6-205 | 6 | 205/20HR | 260 | 180 | 246 | 252 | 30 | 30.2 | M8 |
| HFC6-225 | 6 | 225/20HR | 243 | 187 | 275 | 275 | 32.5 | 32.7 | M8 |
| HFC6-230 | 6 | 230/20HR | 260 | 180 | 265 | 272 | 34.2 | 34.4 | M8 |
| HFC6-280 | 6 | 280/20HR | 295 | 178 | 346 | 350 | 45.8 | 46.1 | M8 |
| HFC6-300 | 6 | 300/20HR | 295 | 178 | 346 | 350 | 46.5 | 46.8 | M8 |
| HFC6-340 | 6 | 340/20HR | 295 | 178 | 404 | 408 | 55.0 | 55.3 | M8 |
| HFC6-400/380 | 6 | 400/380 | 295 | 178 | 404 | 408 | 57.2 | 57.5 | M8 |
BST HFC Series Lead Carbon Batteries integrate functional activated carbon and graphene technology into the negative plate, combining the advantages of lead-acid batteries and supercapacitors. They deliver fast charge and discharge performance, extended cycle life of 2,000+ cycles at 80% DOD, and excellent durability even under partial state of charge (PSOC) operation
