All range of lithium batteries with different capacities can be customized for your projects.
25.6V Nominal Voltage: Ensures consistent and reliable power output, making it suitable for a wide range of applications such as home appliances, golf carts, and solar systems.
High Lifespan 2000 Cycles: Offers a long-lasting performance, reducing the need for frequent replacements and lowering long-term maintenance costs.
Embedded BMS System: Improves battery lifespan and ensures safety by managing and monitoring the battery’s performance, preventing overcharging and deep discharge.
Ultra Safe LiFePO4 Chemistry: Provides a stable and non-flammable chemical composition, eliminating the risk of thermal runaway, fire, or explosion, ensuring safe operation in various environments.
24V battery pack – Lithium-Iron-Phosphate (LiFePO4) – 3000mAh

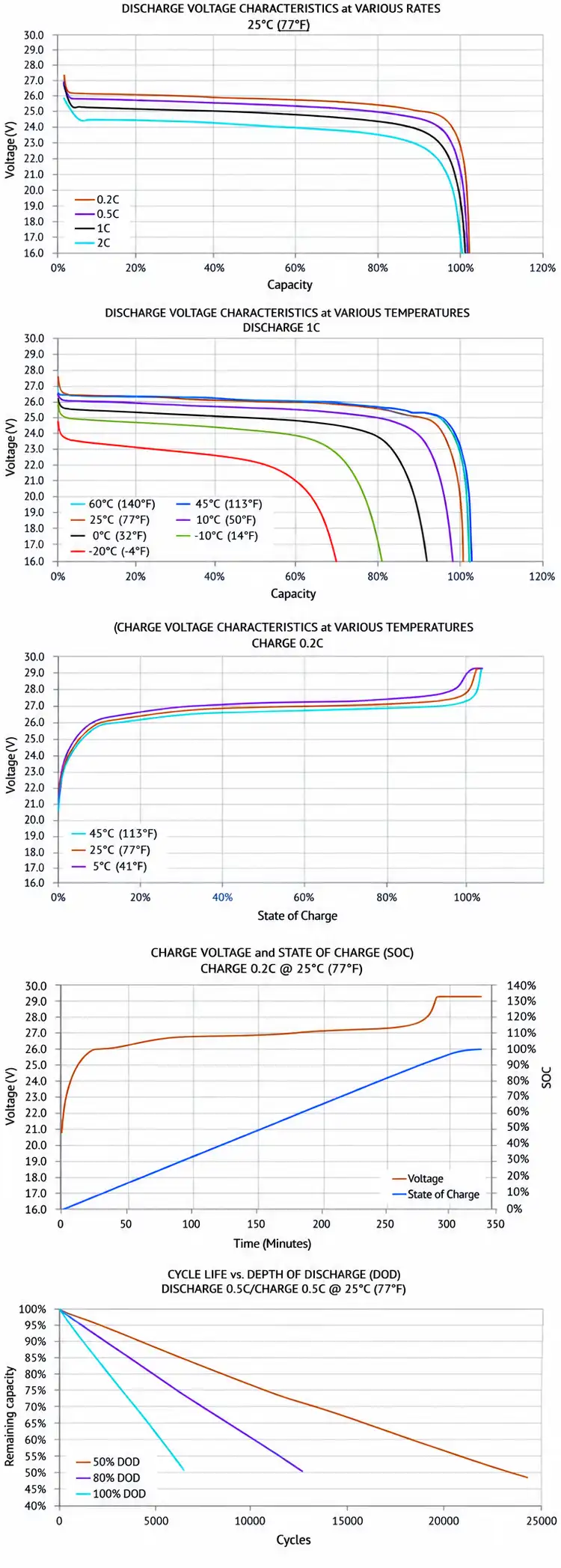

• High lifespan: two thousand cycles and more (see chart)
• Deep discharge allowed up to 100 %
• Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away,no fire or explosion risks)
• Embedded BMS (Battery Management System): improve lifespan and secure the battery
• No Lead, no heavy metal, no toxic element
• Calendar life > 10 years
• Excellent temperature robustness (-20 °C up to +60 °C)
• Constant power during discharge (very low internal resistance)
• Very low Peukert’s losses (energy efficiency >96 %) and self-discharge (<3 % per month)
• No memory effect
• About 50 % lighter and 40% smaller than equivalent Lead-AGM battery with same usable energy
• Certification : CE, RoHS, UL, UN 38.3
| 25.6v 3Ah 76.8Wh LiFePO4 Battery Pack | ||
|---|---|---|
| Model | BST24-3 | |
| Electric | Nominal voltage | 25.6V |
| Nominal capacity | 3000 mAh | |
| Stored energy | 76.8 Wh | |
| Internal resistance | ≤ 40mΩ | |
| Cycles | >2000 cycles (see chart) | |
| Self discharge | < 3% per month | |
| Energy efficiency | > 96% | |
| Standard Charge | Charge voltage | 29.2V ± 0.1V |
| Charge mode | CC/CV : Constant Current / Constant Voltage | |
| Maximum continuous charge current | 1.5A | |
| BMS charge cut-off voltage | 31.2V ± 0.1V | |
| Standard Discharge | Continuous discharge current | 3A |
| Maximum discharge current (30s) | 7A | |
| BMS discharge cut-off voltage | 19.2V | |
| Environment | Charge temperature range | 0°C – 45°C @60±25% |
| Discharge temperature range | -20°C – 60°C @60±25% | |
| Storage temperature | 0°C – 40°C @60±25% | |
| Mechanical | Cell assembly | Cylindrical |
| Casing material | PVC | |
| Dimensions | L:155mm * W:50mm* H:72mm | |
| Weight | 0.80 kg | |
Applications：
Solar Tracker/Golf Cart/ Solar system/ RV, etc
